RuboSORP TGA

Many processes take place at particularly high temperatures, for example in the case of pyrolysis or catalysis and
biomass gasification. In this context, the highly accurate weighing of material samples under corresponding measurement
conditions is of great scientific interest. Against this background, Rubolab offers a highly accurate measuring
instrument for performing thermogravimetric analyses (TGA), based on the unique technology of a Magnetic Suspension
Balance.

The Instrument

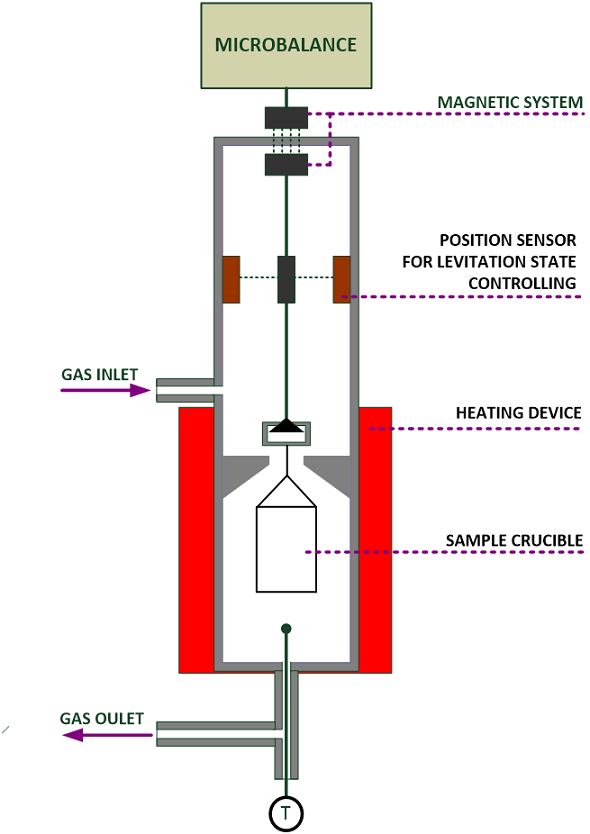

RuboSORP TGA instrument uses the Magnetic Suspension Balance Technology. This allows high resolution mass determination under high pressure and high temperature conditions by utilizing resistant measurement cells. A scientific microbalance is located outside of the cell. Thanks to contactless magnetic suspension coupling, mass
changes within the pressurized and heated measurement cell can be determined. When collecting a measurement, the sample
whose mass change is being measured is attached to the permanent magnet. The actual position is then detected and
controlled via a high performance PID controller. In order to establish a free levitation position for the permanent
magnet and measurement object, voltage is applied to the electromagnet outside of the measurement cell. This allows the
sample mass to be measured under contact free extreme conditions. Load decoupling allows taring or calibrating of
corresponding measurement signal. When this decoupling occurs, only the permanent magnet remains in levitation position

(zero-point position). Taring in zero-point position ensures long term stable and drift-compensated measurements. When
measuring point is selected, the measurement object is lifted, and the corresponding weight is detected by the
microbalance.

Available Versions


Version Type Max.(℃) Max.(bar)
RuboSORP TGA-HP 1000 100
RuboSORP TGA-HP2 750 150
RuboSORP TGA-ST 1100 50
RuboSORP TGA-HT 1200 30
RuboSORP TGA-HT2 1300 20
RuboSORP TGA-HT3 1400 20
RuboSORP TGA-LP 1200 1
RuboSORP TGA-LP2 1600 1

The RuboSORP TGA systems are available in 8 different versions which can be used in different pressure and temperature
ranges. All Magnetic Suspension Balances have an accuracy of 10 µg. A higher resolution of 1 µg is available on
request. The standard sample crucible of TGA unit can be filled with max. 20 g of sample material. Special sample
crucibles for carrying out measurements on forced-flow bulk materials or flowed-through liquids are also available.
Please note:
Apart from the standard versions, customized solutions are available on request!

Highlights

Forced-Flow Through Sample Materials
Best possible agreement of measurement data with real processes thanks to improved sample crucible concepts
The RuboSORP TGA can be equipped with forced-flow sample crucibles in order to reproduce processes as realistically as
possible. Moreover, an improved mass transfer between the fluid atmosphere and the sample material reduces the required
measuring time considerably.
Intelligent Software including Uncertainty Calculation
RuboSORP TGA instrument will be delivered with a powerful software package. With the help of this software all
measuring parameters can be read, monitored and changed continuously. In addition to an integrated measurement data
evaluation, a DIN ISO EN 9001 compliant uncertainty analysis of the obtained measurement data is carried out.

Executable Measurements (Examples)

Pyrolyse, Reaction Rate of Cellulose
The picture on the left shows the temperature-dependent reaction rate [g/g*s] of cellulose measured in an inert
atmosphere (blue) and in the presence of carbon dioxide (green). The results show that the reaction starts at much
lower temperatures due to the presence of CO2.

Gasification of Graphite at Different Pressures

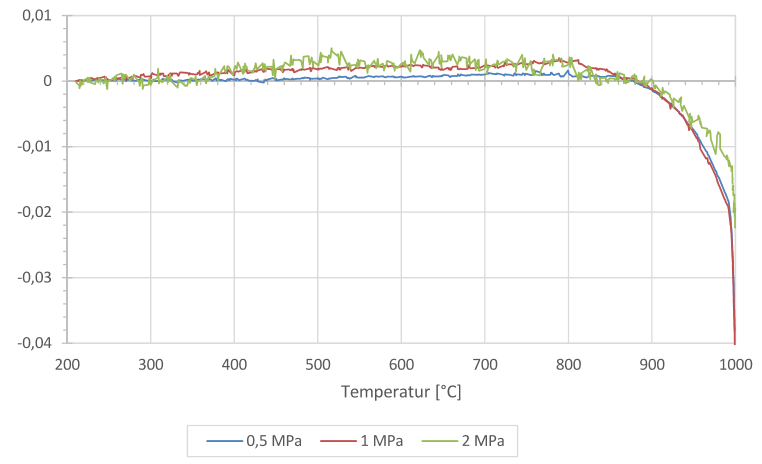

The picture shows the mass loss [g] recorded on a graphite sample as a function of temperature, measured at three
different pressures. All three graphs show a significant weight loss at a temperature above 800°C, indicating that
gasification of the material is occurring.


For further information about our RuboSORP TGA please feel free to contact us

Technical data sheet can be downloaded here
